| Features
· Android 11 TV system based · TVONAIR Streaming App built-in · 4Kx2k@60fps resolution · High performance memory chipset built-in · Dualband Mimo WiFi(2.4G/5G) module built-in · Gigabit LAN interface built-in · LEVEL1 Widevine supported · Premium Bluetooth RCU with Voice Contro & Air mouse · AV1/HEVC/H.265 technology supported · HDMI2.1 Supported · User-friendly interface · Premium quality remote control unit · OTA update for both system and apps · Youtube/Netflix and more apps |
||
| Processor | Quad core ARM Cortex-A55 CPU | |
| GPU | G31™ MP2 GPU processor，OpenGL ES 3.2 Vulkan 1.1 and OpenCL 2.0 | |
| RAM Memory | 2GB DDR4 | |
| Storage | 16GB Emmc | |
| WiFi | IEEE 802.11 b/g/n/ac,2.4g/5g dualband wifi with dual antenna | |
| Ethernet | IEEE 802.3 10/100/1000M Ethernet MAC | |
| Bluetooth | Bluetooth 5.1 | |
| Housing | Plastic : Black Color , RGB Light for different status | |
|

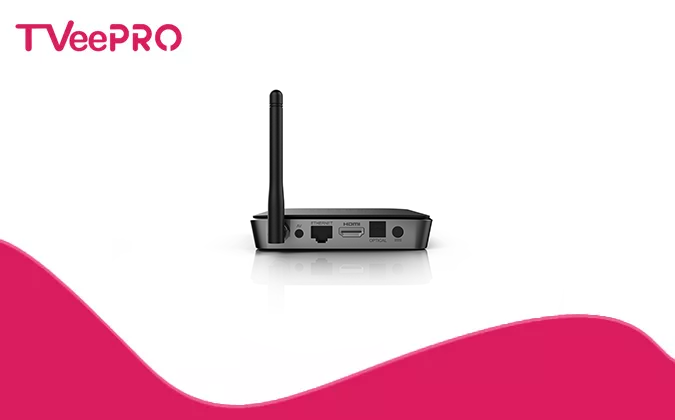

I/O |
1*DC Power | 5V/2A Input |
| 1*HDMI | Up to 4K*2K UHD Output | |
| 1*AV OUT | 480i/576i standard definition output | |
| 2*USB | 1* USB 3.0,1* USB 2.0 | |
| 1*RJ45 | Ethernet Interface 10/100/1000 M | |
| 1*Optical | Optical Port for digital audio output | |
| 1*TF CARD | Support 4GB/8GB/16GB/32GB/64GB | |
| Power | DC 5V/2A；LED indicator，Working/Blue,Standby/Red,WiFi/White | |
| Software | ||
| OS | Android 11.0 | |
| – AV1 [email protected] up to 4Kx2K@60fps | ||
| – VP9 Profile-2 up to 4Kx2K@60fps | ||
| – H.265 HEVC [email protected] up to 4Kx2K@60fps | ||
| – AVS2-P2 Profile up to 4Kx2K@60fps | ||
| – H.264 AVC [email protected] up to 4Kx2K@30fps | ||
| – MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) | ||
| – WMV/VC-1 SP/MP/AP up to 1080P@60fps | ||
| Video & | – AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps | |
| Picture | – MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) | |
| – MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) | ||
| – RealVideo 8/9/10 up to 1080P@60fps | ||
| – Multiple language and multiple format sub-title video support | ||
| – MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) | ||
| – Supports JPEG thumbnail, scaling, rotation and transition effects | ||
| – Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file | ||
| formats | ||
|
Audio |
– Supports MP3, AAC, WMA, RM, FLAC, Dolby AudioOptional, DTSOptional and programmable with 7.1/5.1 down-mixing
– Low-power VAD – Built-in serial digital audio IEC958 input/output, SPDIF input/output and PCM input/output, SPDIF supports 192KHz 16/24/32bit stereo – TDM/PCM/I2S audio interface supporting 2-channel input and 8-channel (7.1) output – Digital microphone PDM input with programmable CIC, LPF, HPF, support up to 8 DMICs – Built-in stereo audio DAC – Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S +PCM |
|
| Image | HD JPEG、BMP、GIF、PNG、TIF | |
| Language | English French Germany Spanish Dutch Italian Arabic Russian Portugal etc multilateral languages | |
|
Packing |
Product dimension | 115*115*25(mm) |
| Qty per unit packing | 1pc | |
| Unit packing: (LxWxH) | 231*155*84(mm) | |
| Unit packing (G.W.) | 0.75Kg | |
| Qty per export carton | 20PCS | |
| Export carton (WxHxL) | 450*400*320 （mm） | |
| Export carton (G.W.) | 15Kg | |
| Accessories ： | ||
| 1、HD cable *1 | ||
| 2、IR Remote control unit *1 | ||
| 3、User Manual *1 | ||
| 4、Package box *1 | ||
| 5、Power adapter *1 | ||
